Figure 4
From: Effects of chemical alternation on damage accumulation in concentrated solid-solution alloys

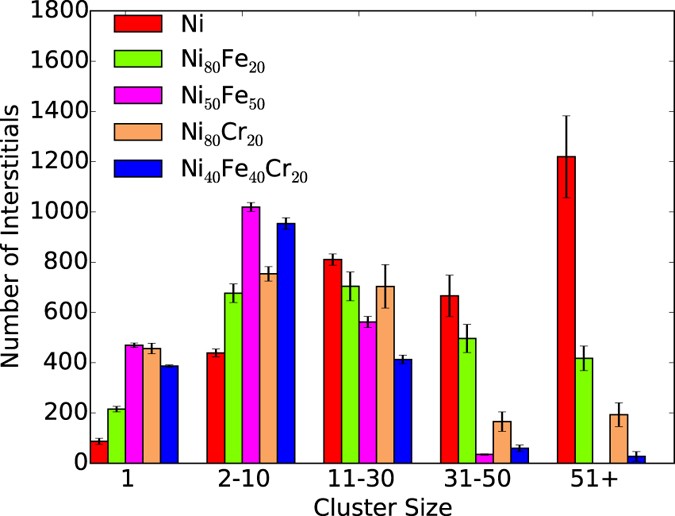

Interstitial cluster size distribution. Comparison of interstitial cluster size distribution between Ni, Ni80Fe20, Ni50Fe50, Ni80Cr20 and Ni40Fe40Cr20 alloys after 150 cumulative recoils (0.015 NRT dpa). Data are taken as an average of two sets of recoil simulations. Error bars show the standard error of the mean.
