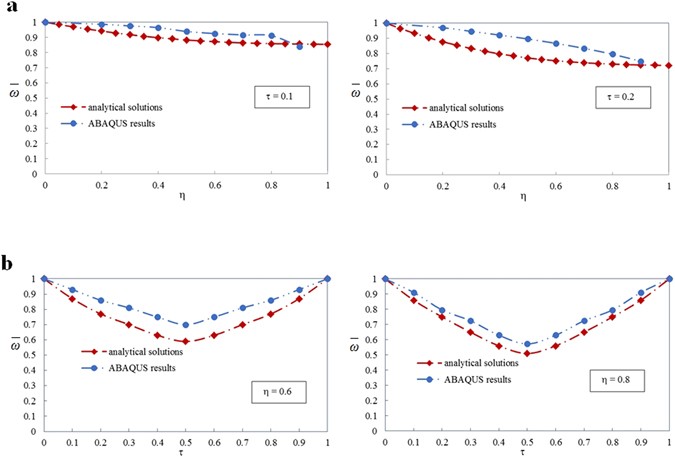

Influence of the geometric parameters of the delamination on the vibration frequency. (a) Variation of the nondimensional frequency \(\bar{\omega }\) with respect to the nondimensional delamination length η for the nondimensional delamination depth τ = 0.1 and τ = 0.2. (b) Variation of the nondimensional frequency \(\bar{\omega }\) with respect to the nondimensional delamination depth τ for the nondimensional delamination length η = 0.6 and η = 0.8.
