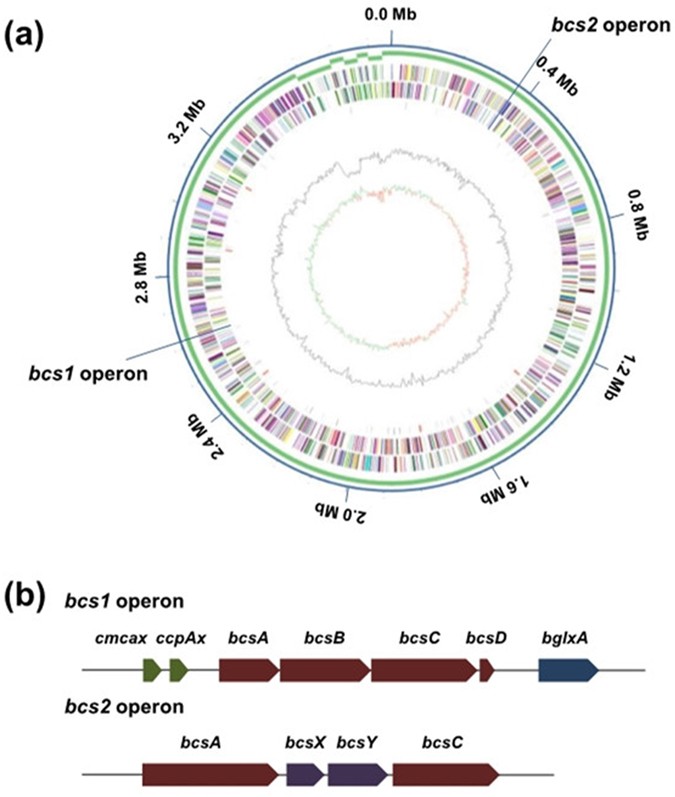

Overview of K. nataicola RZS01 genome. (a) The circles represent (from the outside to the inside): circle 1, DNA base position (bp); circle 2, contig components; circle 3, protein-coding regions transcribed clockwise; circle 4, protein-coding regions transcribed anti-clockwise; circle 5, distribution of genes encoding ncRNA (black), tRNA (blue) and rRNA (red); circle 6, G + C content; circle 7, GC skew. (b) The compositions of 2 bcs operons, which differ from each other in gene content.
