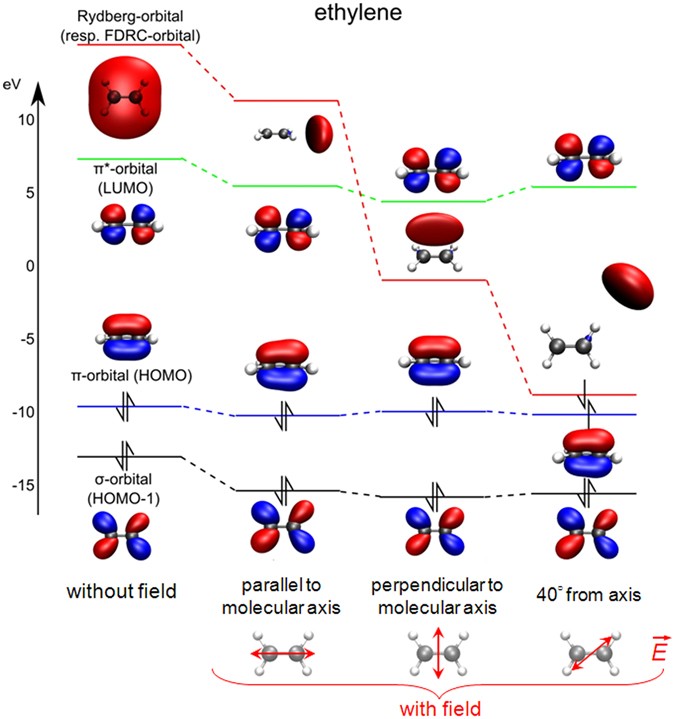

Figure 4
Ethylene orbitals for various orientations of the laser polarization, for an intensity of 9 × 1013 W cm−2. The rightmost column shows the case where the laser polarization lies along the C-H bond direction. In this configuration, the field easily shifts electron density in that direction and the ionization rate correspondingly increases.
