Figure 2

From: Directing the Self-assembly of Tumour Spheroids by Bioprinting Cellular Heterogeneous Models within Alginate/Gelatin Hydrogels

Figure 2

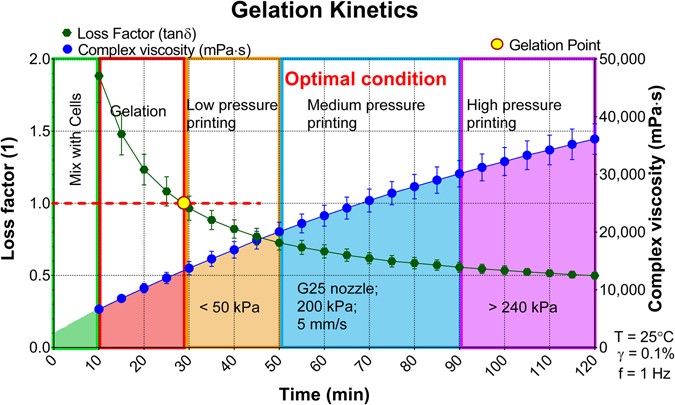

Gelation kinetics of the 3% alginate/7% gelatin hydrogel composite. The green spheres and fit represent the loss factor (left y-axis), the blue spheres and fit represent the complex viscosity (right y-axis). The red dashed line shows where the loss factor equals one indicating the gelation point of the hydrogel. Results showed in mean ± SD, n = 3.
