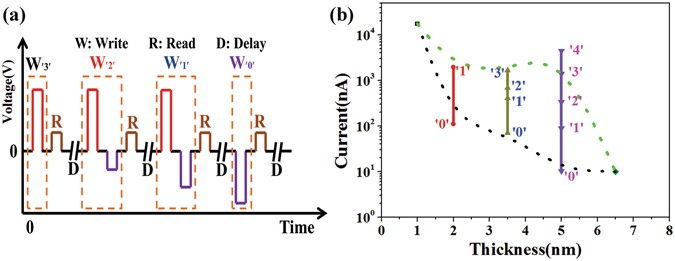

Figure 4

(a) The test processes. The voltage pulses applied in the test are about 5 μs. Before writing the middle resistance states (like ‘1’ and ‘2’), a voltage pluse should be applied to set the device at lowest resistantce. (b) The current as a function of thickness, all RSs are read at 0.8 V.
