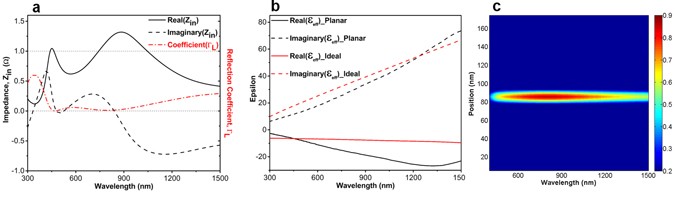

Figure 3
The extracted values for (a) input impedance and reflection coefficient of the MIMI structure, (b) real and imaginary part of permittivity for ideal and fabricated planar cases and (c) the absorption distribution over the MIM stack.
