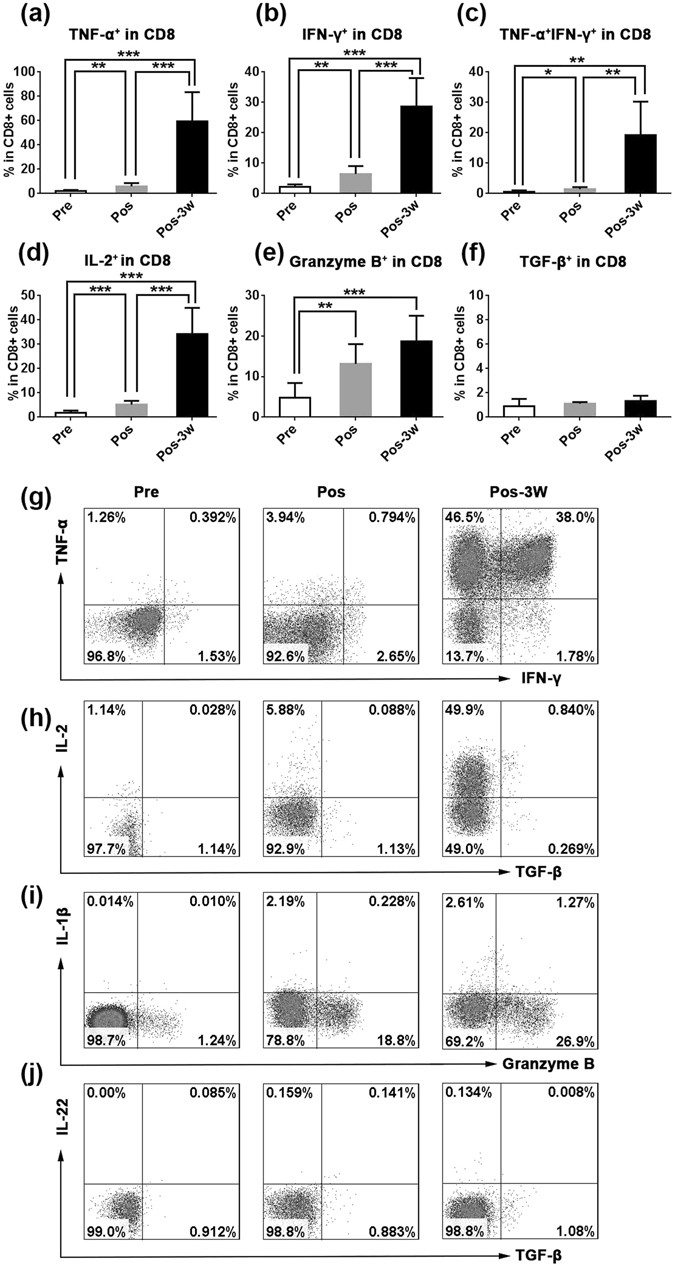

Figure 2

Expression profiling of cytokines expressed by CD8⁺ T cells in peripheral blood after HSRT. PBMCs were treated with a leukocyte activation cocktail for 6 h, and the cells were then collected and labeled with IFN-γ (g), TNF-α (g), IL-2 (h), TGF-β (h), IL-1β (i), granzyme B (i), or IL-22 (j). The mean values of the frequencies of TNFα⁺CD8⁺ T cells in CD8⁺ T cells (a), IFNγ⁺CD8⁺ T cells in CD8⁺ T cells (b), TNFα⁺IFNγ⁺CD8⁺ T cells in CD8⁺ T cells (c), IL-2⁺CD8⁺ T cells in CD8⁺ T cells (d), granzyme B⁺ CD8⁺ T cells in CD8⁺ T cells (e), and TGFβ⁺CD8⁺ T cells in CD8⁺ T cells (f) were analyzed at the indicated times. The panel g–j showed the representative result from one patient. The data are shown as the mean values ± SEM (n = 6). Statistics were derived using ANOVA with Bonferroni’s post-test. *p < 0.0167, **p < 0.01; ***p < 0.001.
