Figure 4
From: Revealing enterovirus infection in chronic human disorders: An integrated diagnostic approach

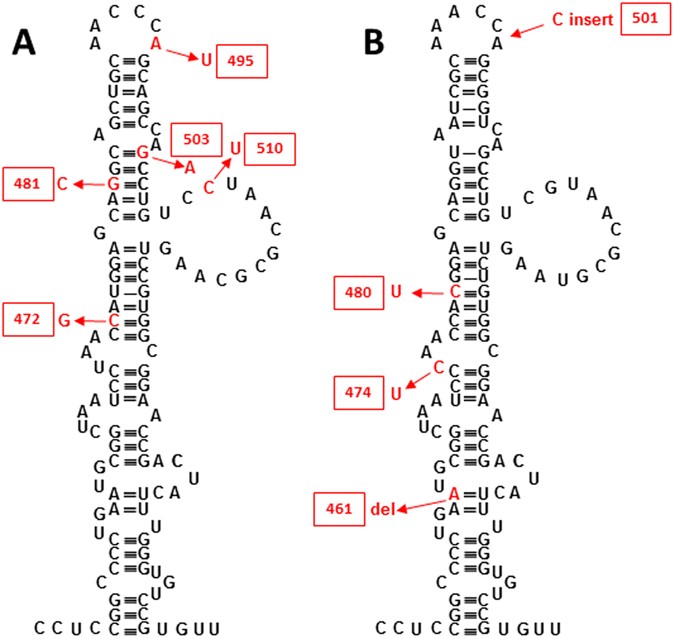

Secondary structure of the IRES element domain V from PPS cases RBJ/va15 (A) and LZL/va10 (B). Hairpin structures are presented in black for viruses that are most closely related to the PCR product sequences from respective cases. Mutations in the sequences from PPS cases are shown in red. In most cases these mutations disrupt the secondary structure of domain V, suggesting that the mutated agents have reduced fitness.
