Figure 2
From: Reconfigurable chaos in electro-optomechanical system with negative Duffing resonators

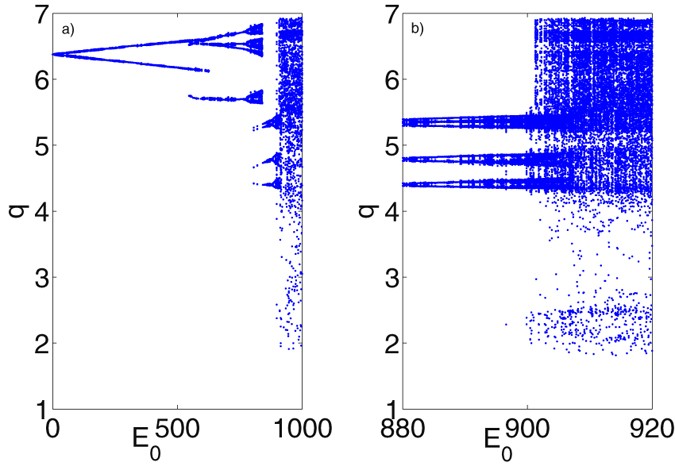

Bifurcation diagram of mechanical displacement q with varying E 0. (a) is with a large E 0 varying range and (b) is with an narrower range extracted from (a).
