From: Full left ventricular coverage is essential for the accurate quantification of the area-at-risk by T1 and T2 mapping

Figure 3

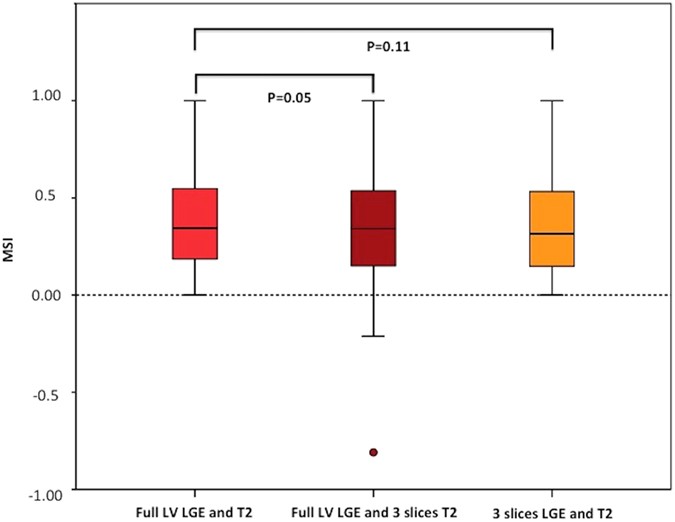

Performance of the 3 approaches for the T2-based MSI. Box and whisker plots of the MSI by T2 using full LV coverage for both the MI size and AAR; 3-slice approach for AAR and full LV coverage for the MI size; and 3-slice approach for both the MI size and AAR. The MSI using 3-slice approach for AAR and full LV coverage for the MI size resulted in negative MSI in 7 patients.
