Figure 6
From: Integrated regulatory network reveals the early salt tolerance mechanism of Populus euphratica

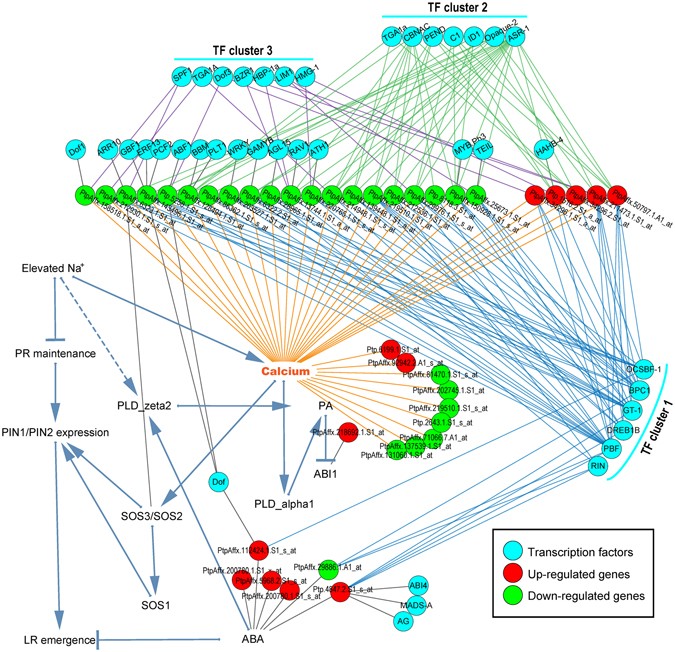

Integrated salt response pathway network in P. euphratica. Dark blue arrows (active or repress) indicate known salt-response pathways in plants, other edges indicate co-expression relationships of the up- or down-regulated core genes connected with the Calcium (Ca2+) or ABA signal in the known pathways. Cyan nodes, TFs; red nodes, up-regulated core genes; green nodes, down-regulated core genes. Based on the relationships between identified TFs and up- or down-regulated core genes, three main TF clusters (1, 2, and 3) were identified. TF cluster 1 strongly connected with Ca2+ related up- or down-regulated core genes and might be involved in ABA-dependent pathway, TF cluster 2 strongly connected with Ca2+ related up- or down-regulated core genes but didn’t connected with ABA pathway, while TF cluster 3 weakly connected with several Ca2+ related up- or down-regulated core genes.
