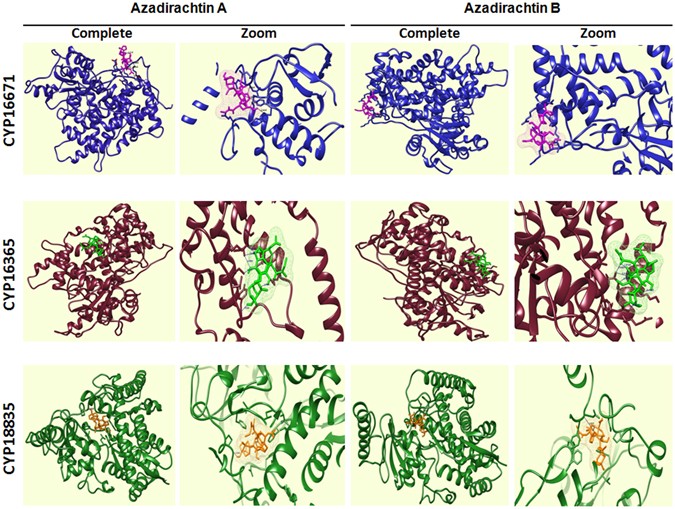

Molecular docking analysis of CYP450 putatively involved in triterpenoid biosynthesis. Interaction of complete protein and docked regions with Azadirachtin A and Azadirachtin B are shown in the figure. Three CYP450s are represented in different colors. Complete block representing the whole protein ligand complex, whereas the zoom blocks are showing the interacting orientation of functional moieties of Azadirachtin A and Azadirachtin B within the cavity of protein.
