Figure 3
From: Electronically Switchable Broadband Metamaterial Absorber

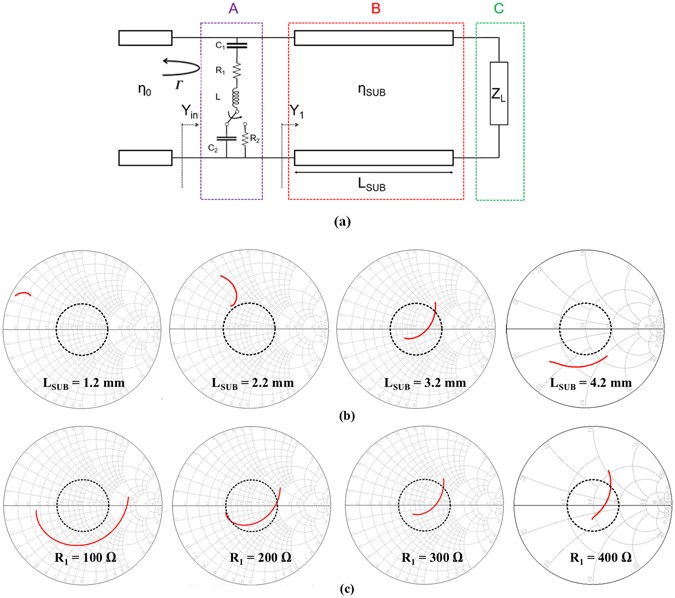

(a) Transmission line mode. (b) Input impedance traces from 8 to 12 GHz on Smith chart at different (b) LSUB and (c) R1. The dotted line is 2:1 VSWR circle.
Figure 3 | Scientific Reports
