Figure 4
From: Electronically Switchable Broadband Metamaterial Absorber

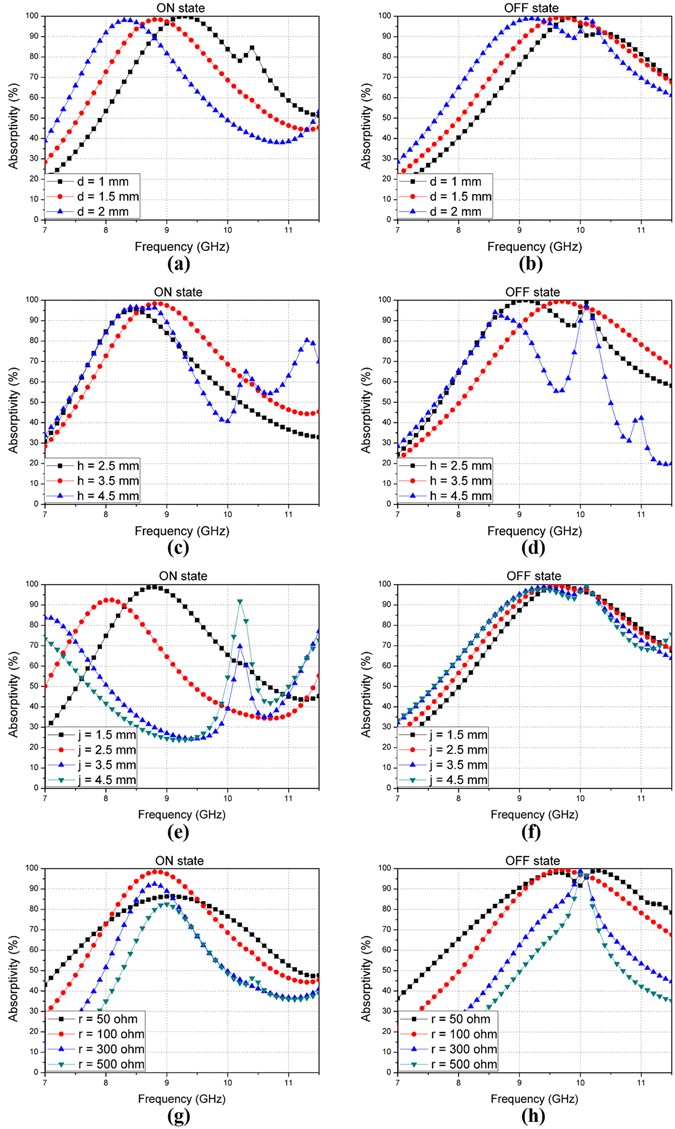

Simulated absorptivity at different values of design parameters: (a) ON state when value of ‘d’ varies from 1 mm–2 mm, (b) OFF state; (c) ON state when value of ‘h’ varies from 2.5 mm–4.5 mm, (d) OFF state; (e) ON state when value of ‘j’ varies from 1.5 mm–4.5 mm, (f) OFF state; (g) ON state when value of ‘r’ varies from 50 Ω–500 Ω, (h) OFF state.
