From: Spatial patterns of wet season precipitation vertical gradients on the Tibetan Plateau and the surroundings

Figure 4

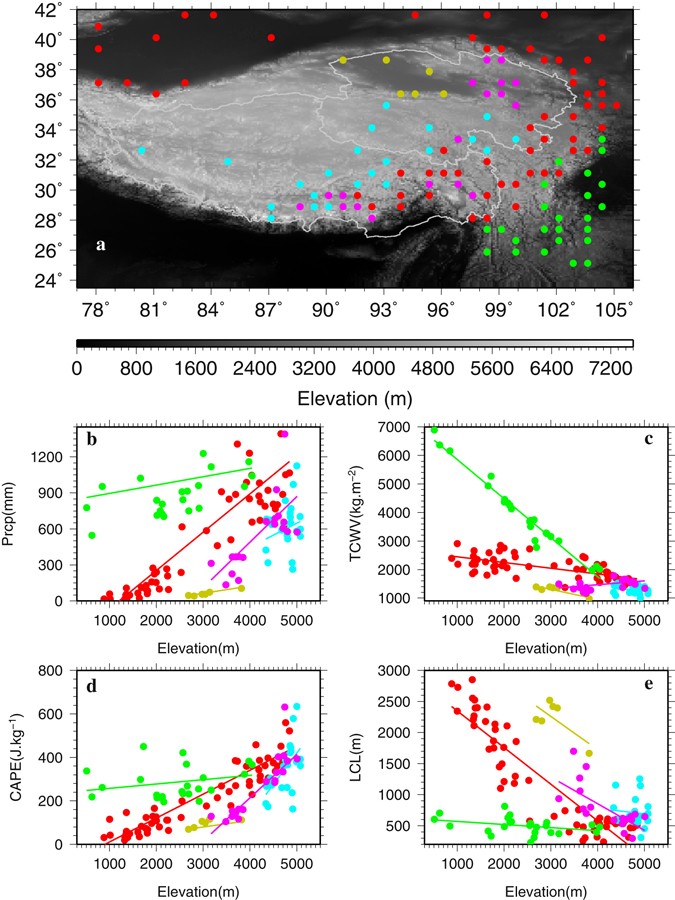

Locations of the ERA-Interim cells whose wet season precipitation is correlated statistically significantly at 90% confidence level with that of the corresponding stations (a). Vertical distributions of wet season precipitation (b), total column water vapor (TCWV) (c), convective available potential energy (CAPE) (d), and lifting condensation level (LCL) (e) with ERA-Interim elevation for the ERA-Interim cells that are separated into the same color-coded 5 groups as for the observations. This figure was plotted using the Generic Mapping Tools (GMT) V4.5.0 (https://www.soest.hawaii.edu/gmt/).
