Figure 5

From: Epigenetics of the preferential silencing of Brachypodium stacei-originated 35S rDNA loci in the allotetraploid grass Brachypodium hybridum

Figure 5

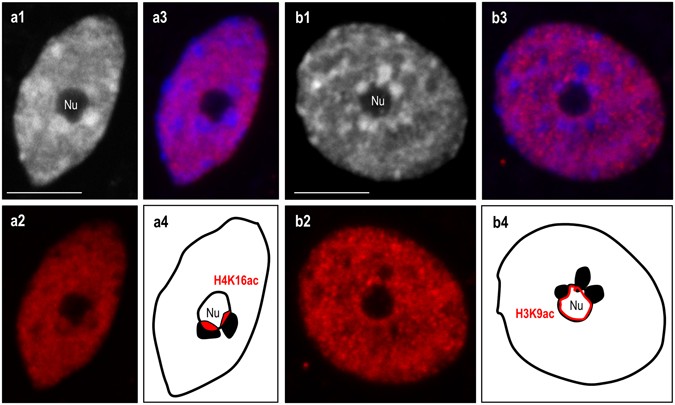

Immunopatterns of H4K16ac (a1–a4) and H3K9ac (b1–b4) in the nuclei isolated from B. hybridum roots. a1,b1–DAPI counterstained nuclei; a2,b2–histone immunopatterns; a3,b3–superimposed channels of particular histone modification foci distribution (red) and DAPI (blue); a4,b4–schematic representation of H4K16ac (a4) and H3K9ac (b4) foci distribution in the nucleolus and adjacent chromocentres. Nu – nucleolus. Scale bar: 5 µm.
