Figure 8

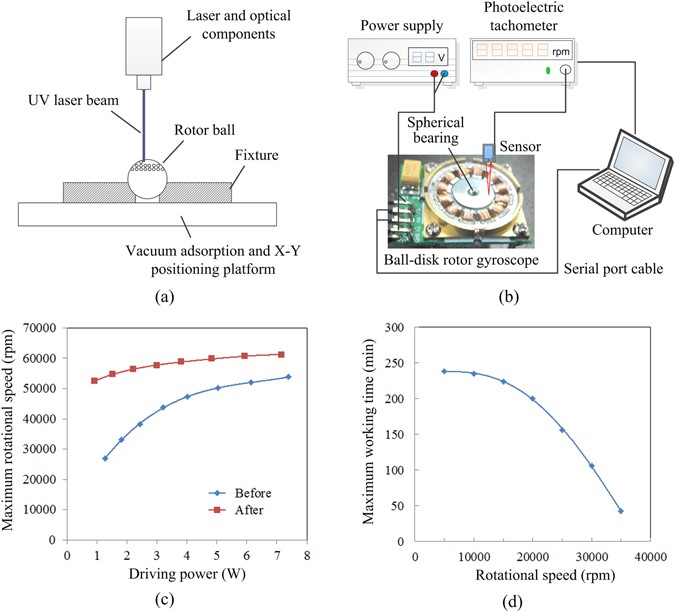

(a) Schematic of the laser ablation process on the rotor ball. (b) The block diagram of drag reduction test system. (c) Evolutions of maximum rotational speed with driving power. (d) Evolutions of maximum working time with rotational speed.
