Figure 3

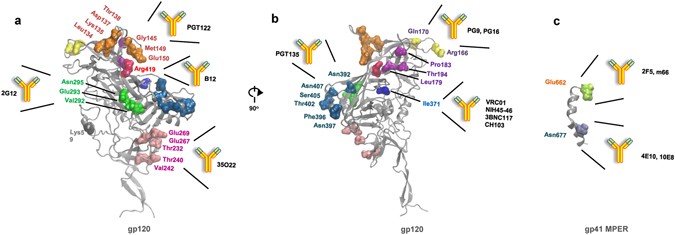

Mapping of treatment failure-related mutations on the high-resolution structures of HIV-1 gp120 (a) and 90° views (b) and gp41 MPER (c). Most treatment failure-related mutations overlapped with the neutralization epitopes of different kinds of bnAbs.
