Figure 3

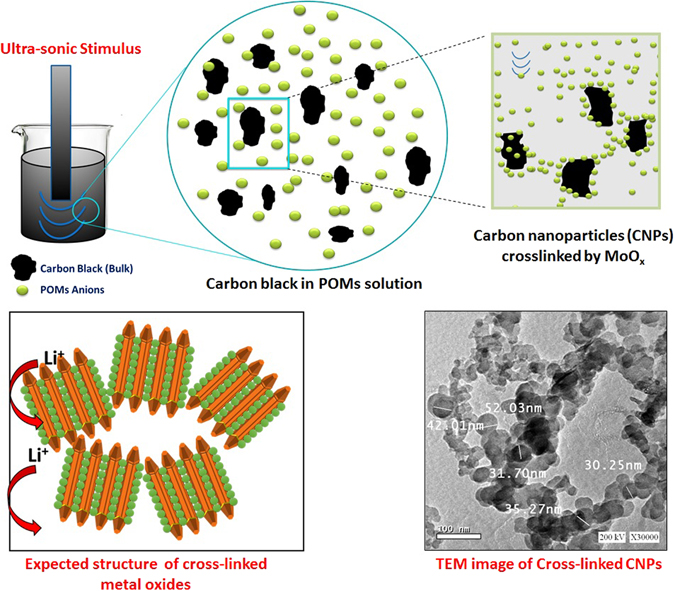

Schematic illustration for the morphology engineering of carbon nanoparticles (CNPs) by top-down approach [Polyoxometalate assisted-solution technique]. Expected structure before SEM inspection of real results is shown down-left.
