Figure 5 | Scientific Reports

Figure 5

From: Dimensionality Effects in FeGe2 Nanowires: Enhanced Anisotropic Magnetization and Anomalous Electrical Transport

Figure 5

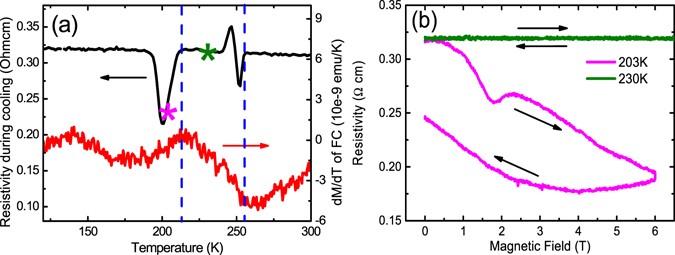

Electric transport of single wire. (a) Resistivity result measured during cooling with magnetic field of 60000 Oe applied perpendicular to the device plane, showing two anomalies at approximately 250 K and 200 K (left y axis), in comparison with dM/dT of FC magnetization (right y axis). Blue lines are for eye-guide. (b) Field dependent resistivity measured at 203 K and 230 K (temperatures marked with stars in (a)). The arrows show the field hysteresis.
