From: Competition between Superconductor – Ferromagnetic stray magnetic fields in YBa2Cu3O7−x films pierced with Co nano-rods

Figure 1The alternative text for this image may have been generated using AI.

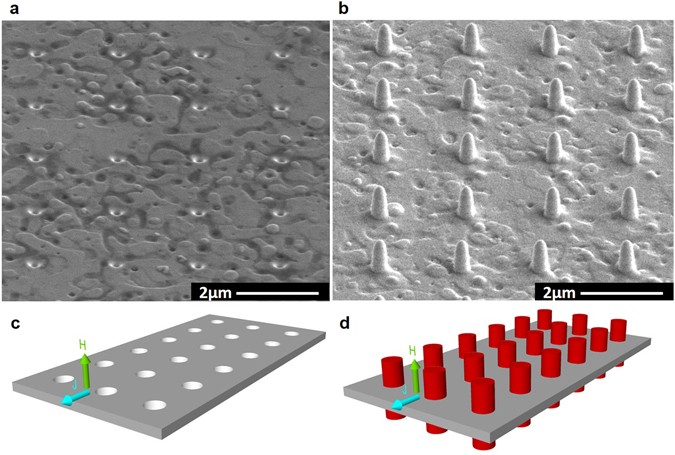

Sample description. Tilted SEM pictures of YBCO transport bridges patterned with an array of (a) antidots (b) antidots filled with Co nano-rods. (c) and (d) Schematic representation (not at scale) of transport bridges shown in (a) and (b), respectively, with the direction of applied electric current and magnetic field indicated.
