Figure 4

From: Competition between Superconductor – Ferromagnetic stray magnetic fields in YBa2Cu3O7−x films pierced with Co nano-rods

Figure 4The alternative text for this image may have been generated using AI.

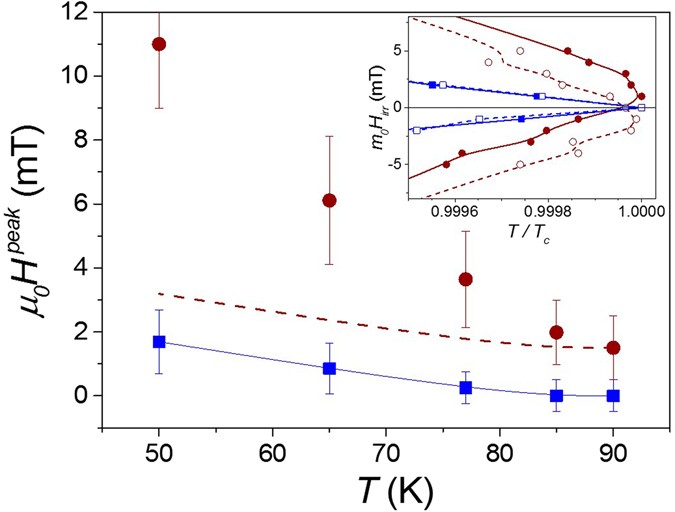

Temperature dependence of μ0Hpeak. Magnetic field position of the peak in the critical current density and critical temperature at different temperatures for a bridge with antidots (squares) and antidots filled with nano-rods (circles). Dashed line shows the temperature dependence obtained by sum of squared points and the contribution of nano-rods at high temperature. Inset shows the irreversibility line measured decreasing field (closed symbols) and increasing field (open symbols), for the bridge with antidots (squares) and antidots filled with nano-rods (circles).
