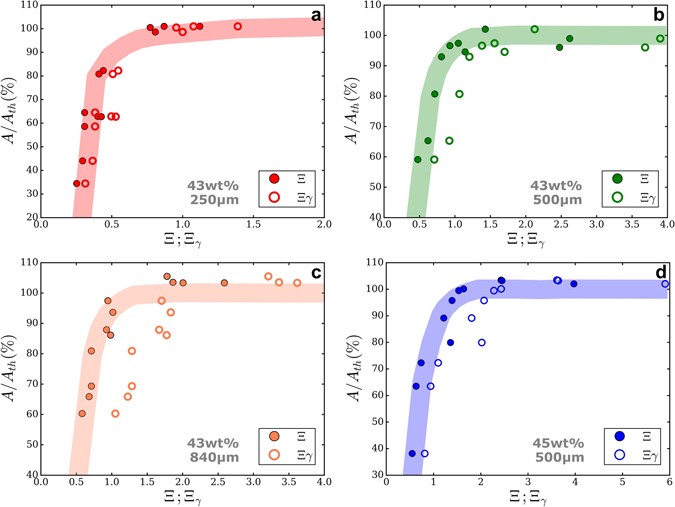

Figure 8
From: Linking Rheology and Printability for Dense and Strong Ceramics by Direct Ink Writing
Deformation ratio vs Ξ and Ξ γ for 43 wt% boehmite suspension with (a) 250 μm (b) 500 μm (c) 840 μm nozzle and (d) 45 wt% with 500 μm. Rheological measures for the 43 wt% suspension come from different suspension to ensure an exact correspondance between dynamic yield stress and deformation ratio. Colored stripes were plotted to help see the trend.
