Figure 1

From: β-caryophyllene emitted from a transgenic Arabidopsis or chemical dispenser repels Diaphorina citri, vector of Candidatus Liberibacters

Figure 1

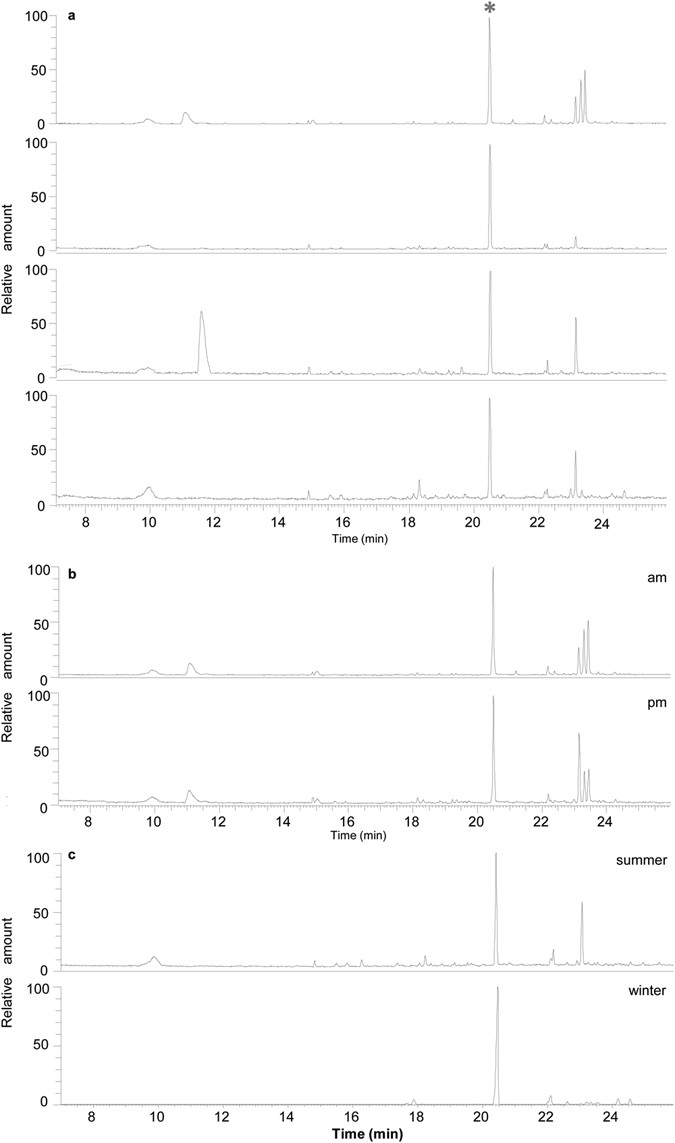

Representative gas chromatographic mass spectrometry separation of volatiles emitted from guava leaves under different conditions: (a) VOC emission from leaves in different developmental stages (from top to bottom: flush; young; mature; old); (b) VOC emission from flushes at different time points; (c) VOC emission from old leaves in different seasons. *, β-caryophyllene.
