Figure 4 | Scientific Reports

Figure 4

From: Rap2a serves as a potential prognostic indicator of renal cell carcinoma and promotes its migration and invasion through up-regulating p-Akt

Figure 4

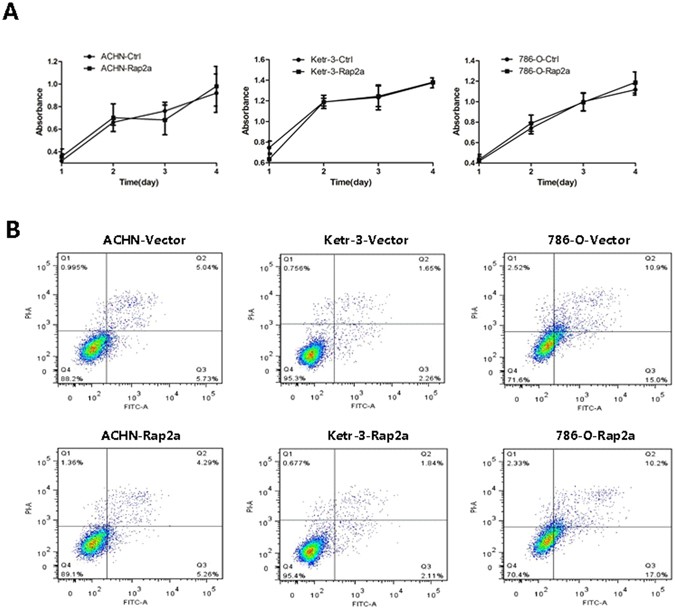

Effects of Rap2a overexpression on RCC cells proliferation. (A) CCK-8 assay was performed in ACHN, Ketr-3 and 786-O cells after transfection of pcDNA3.1-Rap2a/pcDNA3.1 empty vector expression plasmids for 24, 48, 72 and 96 h. (B) The apoptotic cells were determined by annexin V-FITC/PI staining using flow cytometry. Rap2a has no effect on the proliferation and apoptosis of RCC cells. Data are presented as mean ± SD (n = 3).
