Figure 5 | Scientific Reports

Figure 5

From: Rap2a serves as a potential prognostic indicator of renal cell carcinoma and promotes its migration and invasion through up-regulating p-Akt

Figure 5

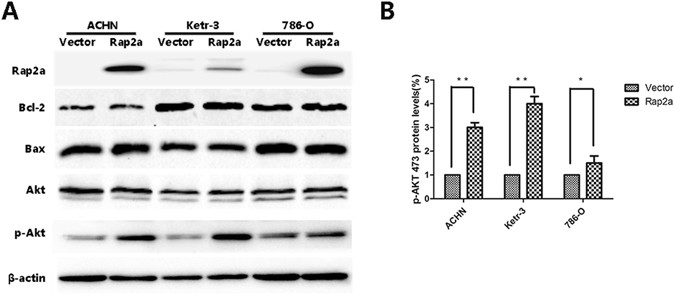

Akt phosphorylation involved in Rap2a-mediated migration and invasion of RCC cells. (A) Western blot analysis of the relative protein levels in RCC cells after Rap2a overexpression. The protein levels of Bcl-2, Bax and Akt had no significant difference between vector and Rap2a overexpression. However, p-Akt level was significantly increased after Rap2a overexpression. (B) Densitometric analysis of p-Akt473. The data are presented as mean ± SD from three independent experiments. *P < 0.05, **P < 0.01.
