Figure 5 | Scientific Reports

Figure 5

From: Transcriptome profiling of mouse brains with qkI-deficient oligodendrocytes reveals major alternative splicing defects including self-splicing

Figure 5

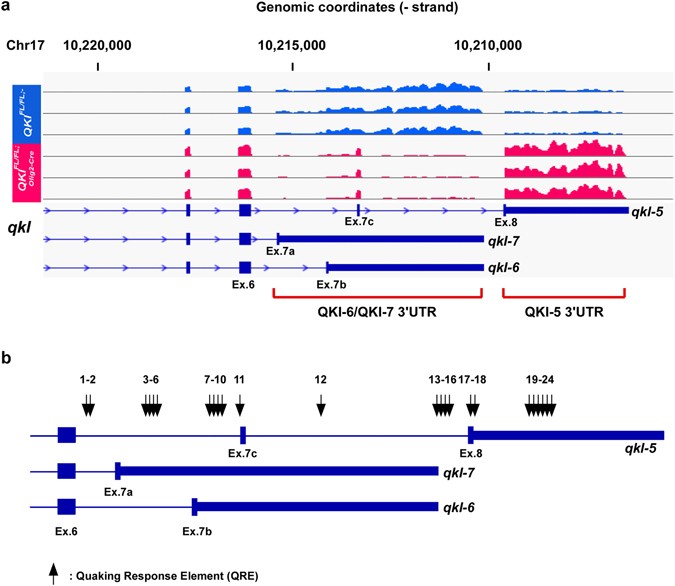

Alterative splicing patterns of qkI in QKI FL/FL;Olig2-Cre and QKI FL/FL;- mice. (a) IGV view of the alternative splicing events in qkI. All samples are represented on the same scale for each screenshot. (b) A schematic of the 3′-UTR of mouse qkI gene showing the location of Quaking Response Elements (QREs) identified. QREs are either a perfect match to consensus QRE or differ by one mismatch.
