Figure 10
From: Electromigration Mechanism of Failure in Flip-Chip Solder Joints Based on Discrete Void Formation

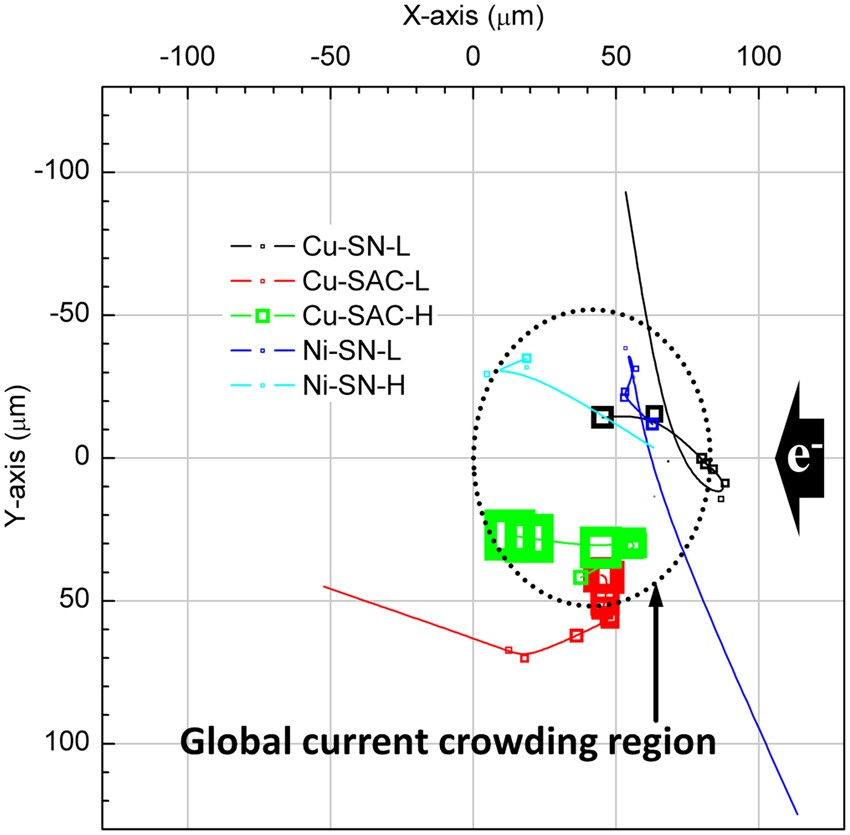

Movement of the geometric center (center of mass) of all voids. The size of dots indicate the size of projected area of the voids on the UBM opening for each EM testing time. The XYZ coordinates are given in Methods.
