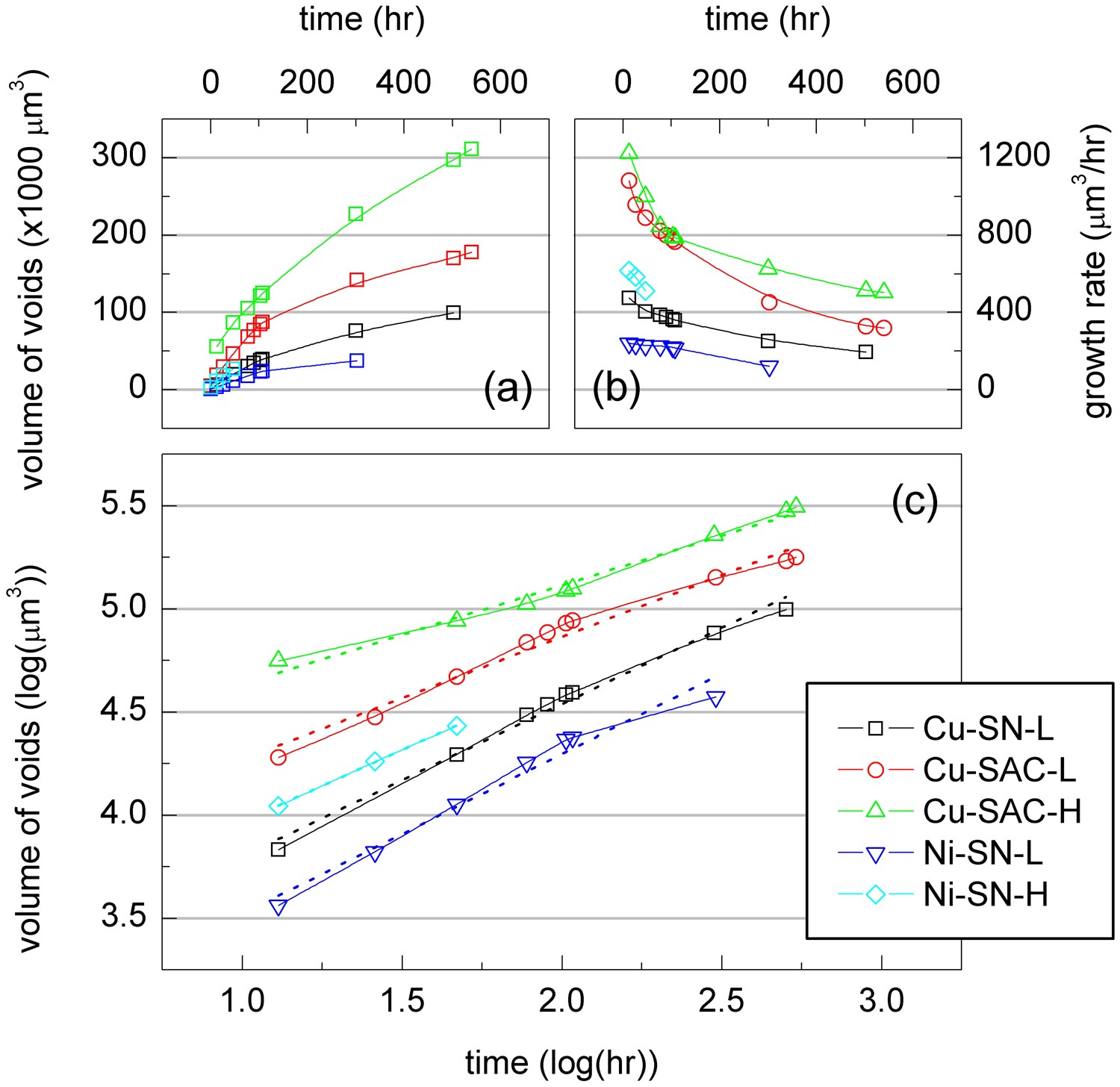

Figure 2
From: Electromigration Mechanism of Failure in Flip-Chip Solder Joints Based on Discrete Void Formation
(a) The evolution of total volume of voids in each sample during EM testing; (b) the growth rate of total void volume in each sample; (c) logarithmic plot of (a).
