Figure 3
From: Hybrid normal metal/ferromagnetic nanojunctions for domain wall tracking

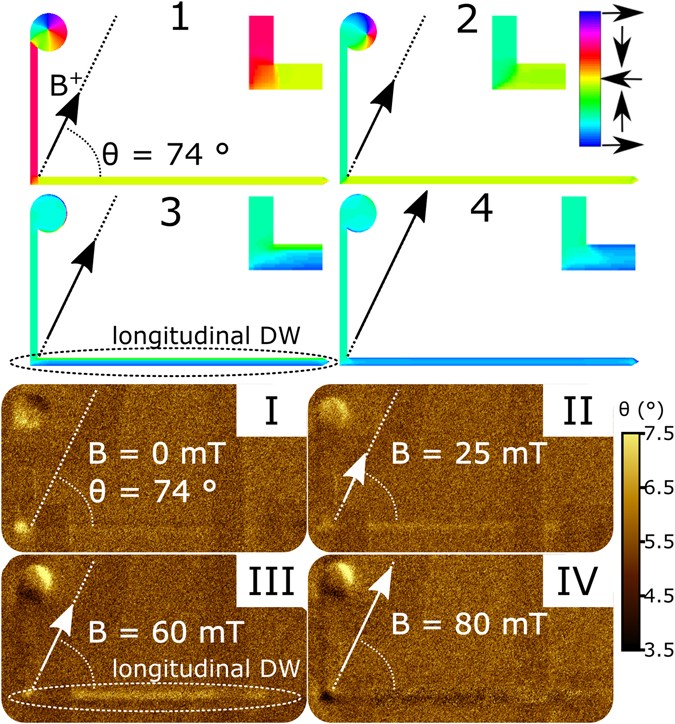

Top: Simulated magnetization spatial distribution in the L-shaped Py nanostructure at equilibrium, the magnetic field is applied at θ = 74°. Color scale refers to the magnetization direction with respect to the x-axis. Numbers (1–4) correspond to the identically labelled areas in Fig. 2. Insets show magnified images of the corner. Bottom: in situ MFM images (I–IV) obtained in the conditions identical to (1–4) simulations.
