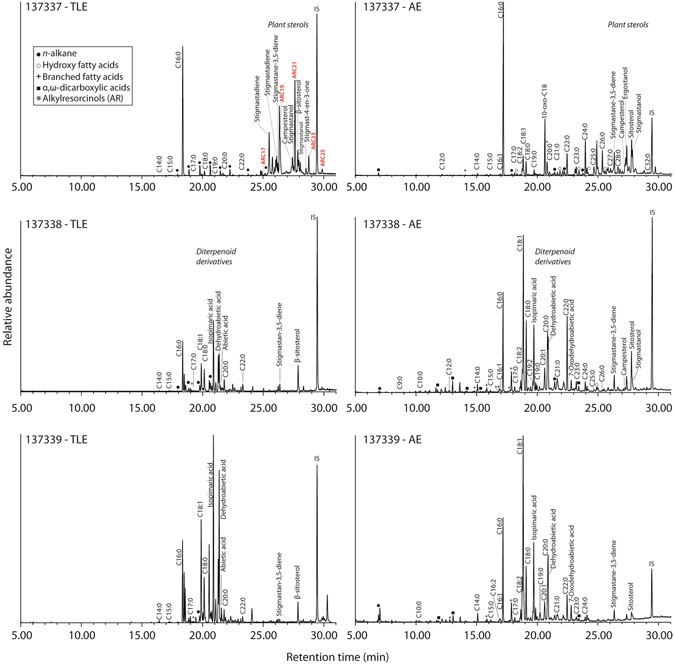

Figure 2

Partial total ion current chromatogram of lipid extracts from the residue (#137337) and the wooden artefact (#137338 and #137339) of total lipid extracts (left) analysed as TMS ethers and acid extracts (right) analysed as methyl esters using a DB-5 ms column. Alkylresorcinols in TLE of the residue are reported in red.
