From: Phonon Conduction in Silicon Nanobeam Labyrinths

Figure 2

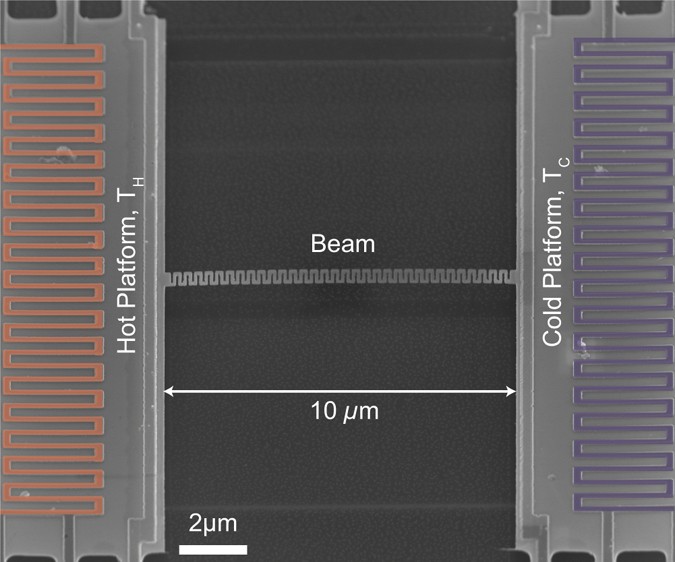

Scanning electron microscope (SEM) images of the measurement structure with false-colored serpentine heater/thermometers. The SEM image is rotated by 45 degrees about the major beam axis. The residual shadow below the beam confirms that it is fully suspended over the substrate.
