Figure 3
From: Optimization-based design of heat flux manipulation devices with emphasis on fabricability

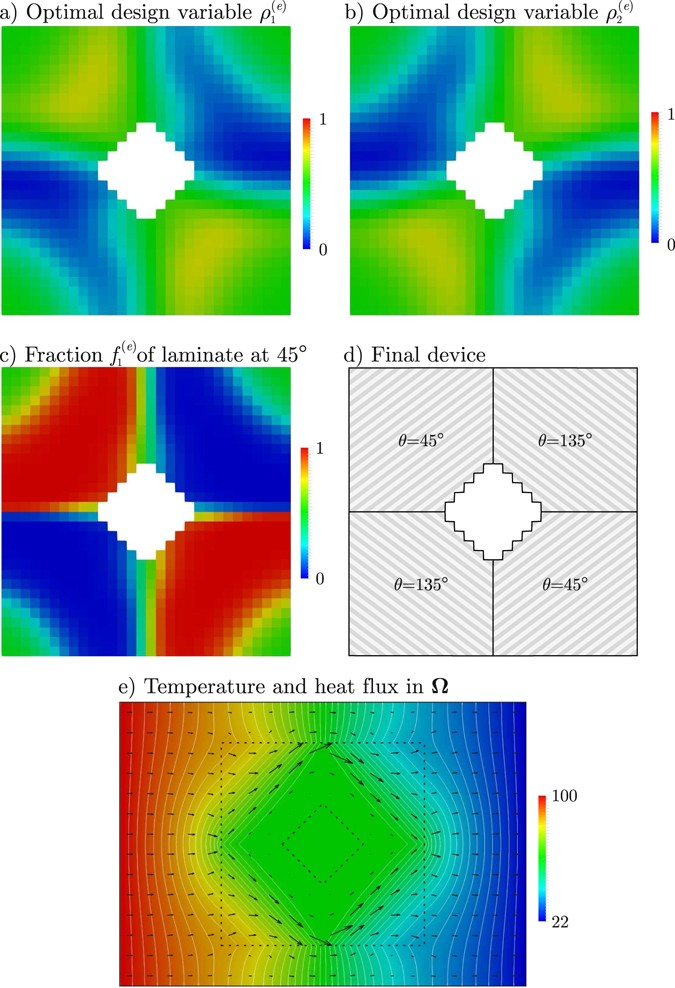

Validation example: (a) optimal design variable \({\rho }_{1}^{(e)}\), (b) optimal design variable \({\rho }_{2}^{(e)}\), (c) fraction of laminate at 45° for optimal \({\rho }_{1}^{(e)}\) and \({\rho }_{2}^{(e)}\), (d) actual device, (e) temperature (colormap with isolines every 2 °C) and heat flux (arrows) in the whole plate.
