Figure 4
From: Optimization-based design of heat flux manipulation devices with emphasis on fabricability

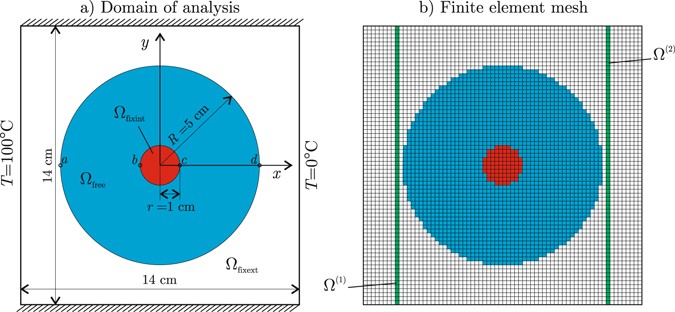

Heat flux concentration and cloaking example: (a) domain of analysis, (b) finite element mesh of Ω; the blue elements belong to the device, while the red and the green ones have prescribed heat flux for concentration and cloaking, respectively.
