Figure 4
From: Phylodynamics of major CRF01_AE epidemic clusters circulating in mainland of China

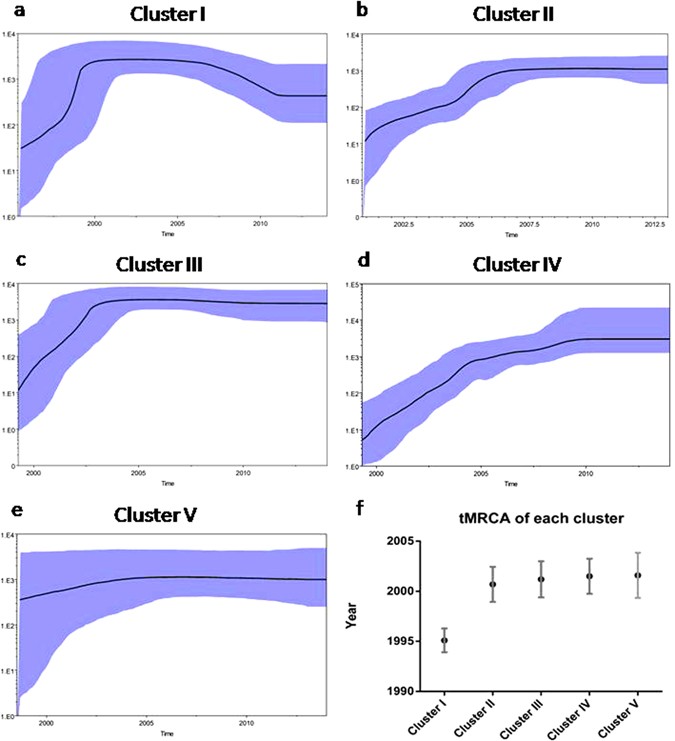

Demographic history of major CRF01_AE epidemic clusters in mainland China. (a–e) Median estimates of the effective number of infections using Bayesian skyline (solid line) are shown in each graphic together with 95% highest probability density intervals of the Bayesian skyline estimates (blue area). The vertical axes represent the estimated effective number of infections on a logarithmic scale. Time scale is in calendar years. (f) tMRCA and 95 CI of each cluster are listed.
