Figure 6

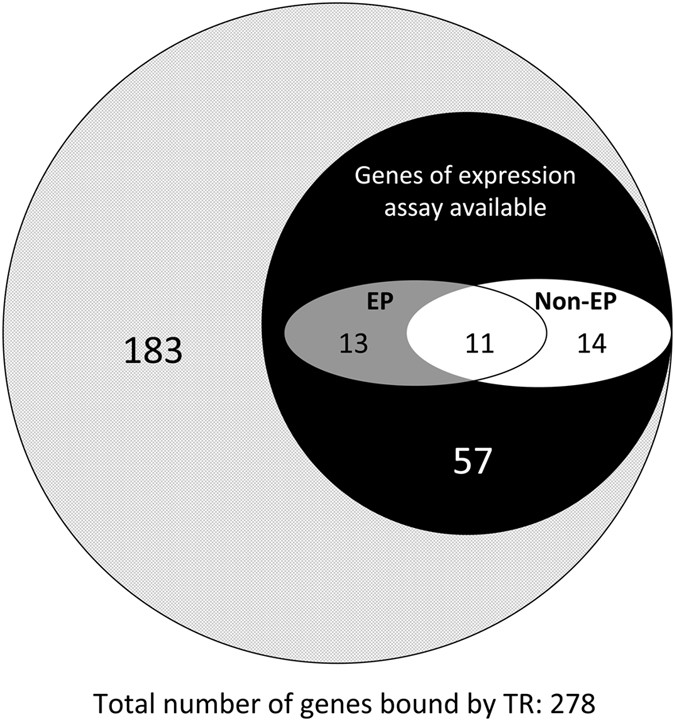

Venn diagram showing overlap of the TR target genes identified by ChIP-on-chip assay with known developmentally regulated genes identified from an early expression microarray study. Of the 278 TR target genes identified by ChIP-on-chip assay, 95 or 34% were also found on the microarray used for the expression study (Note that the actually overlap might be higher as most genes may have different names on the microarray chips used in the expression study and on the genomic chips used here, therefore showing up as non-overlapping). Of the 95 genes present in the gene expression microarray, 38 were found to be regulated during metamorphosis in the intestine in either the epithelium (EP, 13 genes), non-epithelium (Non-EP, 14 genes) or both (11 genes), suggesting that about 40% of the genes identified here are regulated by T3 during intestinal metamorphosis.
