Figure 4

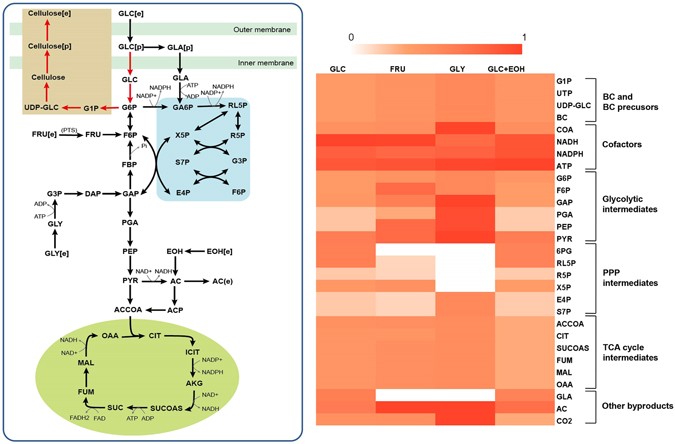

Flux-sum intensity comparisons for different carbon sources. A heatmap illustrating the flux-sum intensity of cofactors, by-products, and other components of central metabolism. The results were normalized to the maximal value of each metabolite, where the darker color indicates stronger flux.
