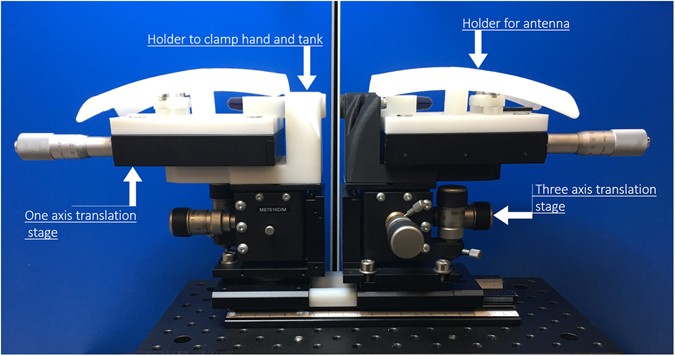

Figure 8
The mechanical setup. The measurement assembly containing two sets of 3-D printed holder and two sets of micro-positioner. The positioners are attached on a plate (optical table). The whole sensor can be mounted on a three axis rotational arm to align precisely against hand or ear lobe for human trial.
