Figure 6

From: Strain Balanced AlGaN/GaN/AlGaN nanomembrane HEMTs

Figure 6

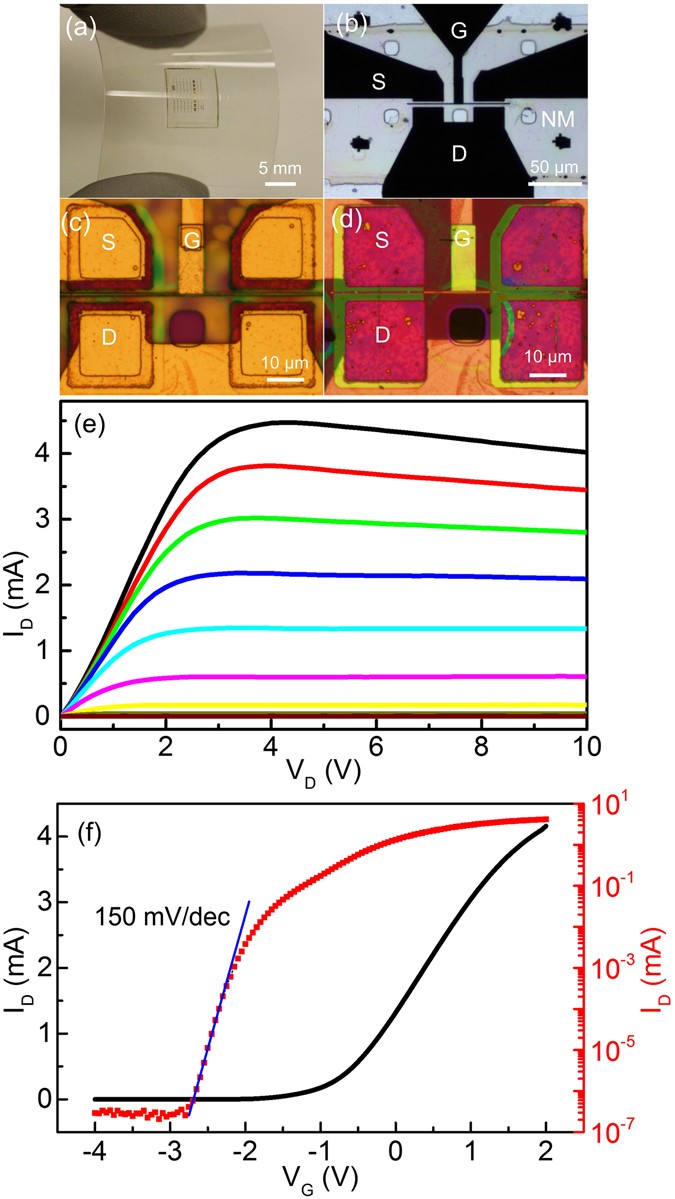

NM HEMT on polyester substrate. (a) Photo of NM HEMTs on PET with bend radius of about 3 cm. (b) NM HEMT microscopy image with back illumination, showing the transparency of the NM. (c) Front side of active region. (d) Backside of active region. (e) ID-VD with gate bias from −3 V to 2 V, with step of 0.5 V. (f) ID-VG with VD of 4 V.
