Figure 6

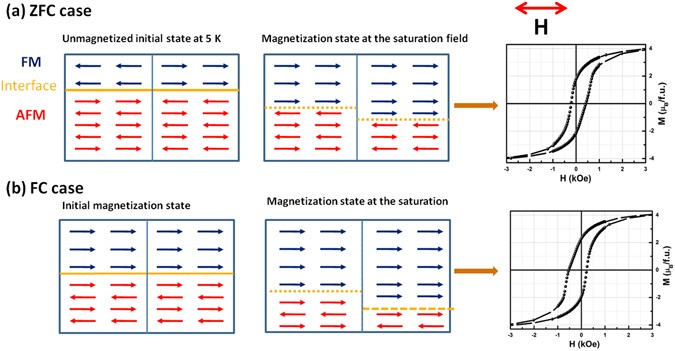

Schematic representation of the spin configuration at different stages (left): for the ZFC (a), and FC cases (b). Here note that the spin configuration is a simple cartoon to illustrate the interface coupling. The resultant hysteresis loop of SEB and CEB effects (right).
