Figure 2
From: Using persistent photoconductivity to write a low-resistance path in SrTiO3

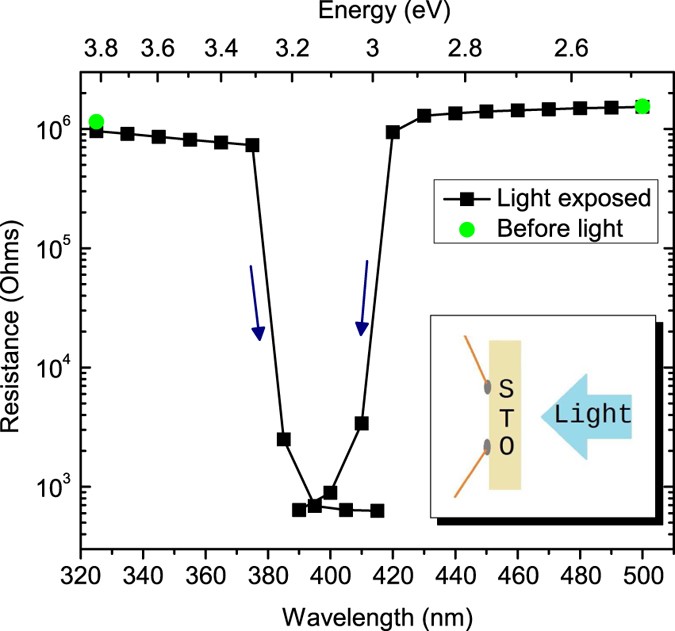

Two-point resistance versus wavelength of light for two STO samples. The duration of light exposure was 10 s at each wavelength. Arrows indicate whether wavelengths were increased or decreased sequentially. Inset: Schematic diagram of the setup. Contacts were placed on the side opposite to light exposure.
