Figure 2

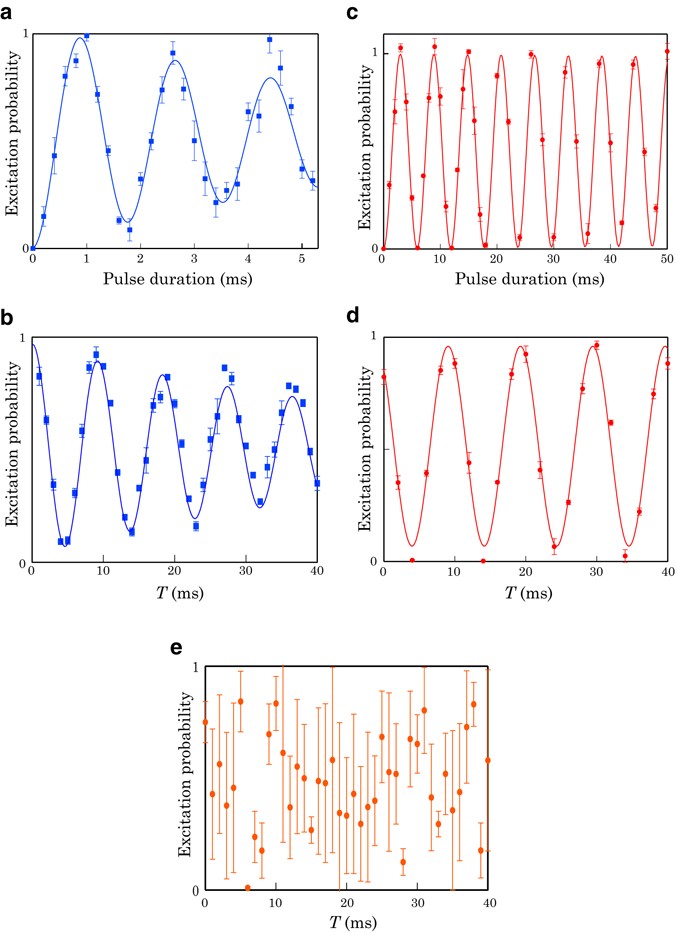

Rabi and Ramsey flops driven by D1-line/MW-RF fields. The lines are damped sinusoidal fit to the data. (a) D1-line Rabi flop. (b) D1-line Ramsey flop. (c) MW-RF Rabi flop. (d) MW-RF Ramsey flop. (e) Relative phase difference between the D1-line and MW-RF fields obtained with a Ramsey interferometry using the MW-RF and D1-line fields as the first and second π/2 pulses, respectively. The error bars reflect 1 σ statistical uncertainty.
