Figure 2

From: Predictions of Backbone Dynamics in Intrinsically Disordered Proteins Using De Novo Fragment-Based Protein Structure Predictions

Figure 2

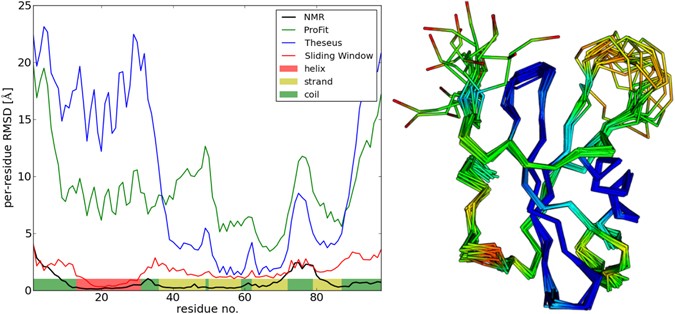

Disorder profile of stefin A (1DVD). NMR ensemble is compared with the same ensemble using alternative structural superposition methods – global superposition (ProFit and Theseus) and sliding window superposition. Predicted secondary structure elements are also highlighted. Visualisation of an NMR ensemble and FRAGFOLD predictions of 1DVD (stefin A). The original NMR ensemble deposited in the PDB was split, so that all of the conformations are overlaid onto each other. FRAGFOLD-IDP prediction is represented here by a spectrum of colours, where blue represents the most rigid predicted residues, followed by green and yellow. Orange and red represent the most disordered regions according to FRAGFOLD-IDP predictions.
