Figure 10

From: Mining novel starch-converting Glycoside Hydrolase 70 enzymes from the Nestlé Culture Collection genome database: The Lactobacillus reuteri NCC 2613 GtfB

Figure 10The alternative text for this image may have been generated using AI.

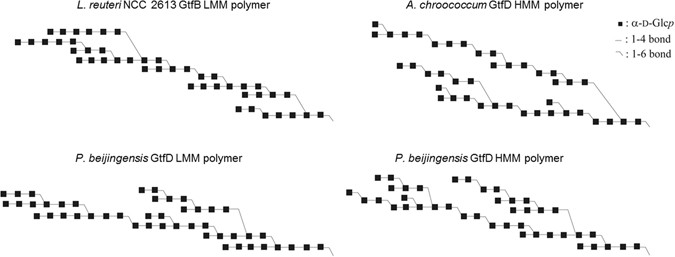

Visual representation of composite structures for the L. reuteri NCC 2613 GtfB-ΔN LMM polymer, the A. chroococcum NCIMB 8003 GtfD HMM polymer20, and the HMM and LMM P. beijingensis GtfD polymers21 formed from amylose V. The composite structures contain all structural features established for the respective products. Quantities of each structural element fit with the combined data of 1D 1H NMR integration and methylation analysis, as well as enzymatic degradation studies with pullulanase.
