Figure 8 | Scientific Reports

Figure 8

From: Arsenic exposure impels CD4 commitment in thymus and suppress T cell cytokine secretion by increasing regulatory T cells

Figure 8The alternative text for this image may have been generated using AI.

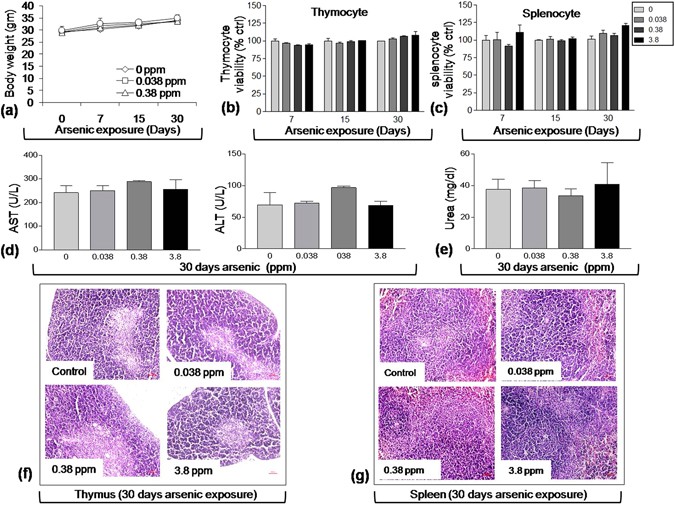

Effect of arsenic exposure on general parameters. Following arsenic exposure mice body weight was recorded weekly. (a) Line graph represents the changes in body weight. Values presented as mean ± S.E at each time point (n = 5–8 per group). (b) Thymocytes and (c) splenocytes (0.1 × 106 cells/200 µl/well) isolated from mice treated with arsenic (0.00, 0.038, 0.38 and 3.8 ppm) orally for 7, 15 and 30 days were cultured at 37 °C in 5% CO2 incubator and viability was checked following 72 h incubation using Presto blue reagent. Fluorescence was measured at 544 (ex.) and 610 (em.) expressed as percent of control (n = 3–5 per group). Serum level of (d) AST, ALT and (e) urea expressed as mean ± S.E. (n = 3 per group). Representative micrographs of histo-architecture of (f) thymus and (g) spleen obtained at 10x magnification (scale bar = 60 µm) from control and 30 day exposed groups.
