Figure 3
From: BiVO4-rGO with a novel structure on steel fabric used as high-performance photocatalysts

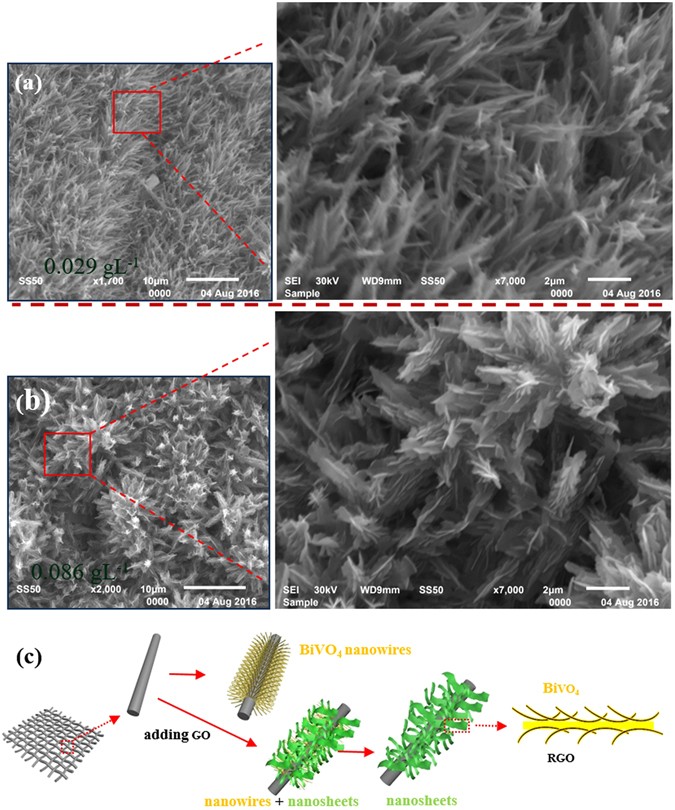

(a) and (b) SEM images of BiVO4-0.029 and BiVO4-0.086; (c) schematic illustration of the synthesis procedure of the BiVO4 nanowires and BiVO4-rGO nanosheets.
