Figure 4
From: BiVO4-rGO with a novel structure on steel fabric used as high-performance photocatalysts

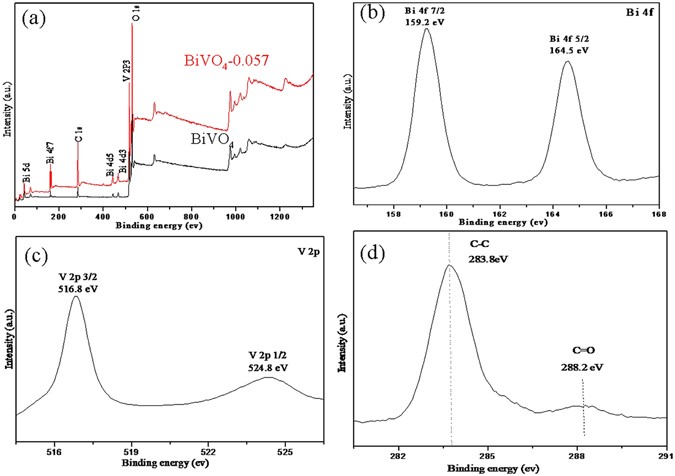

(a) Survey XPS spectra for BiVO4 and BiVO4-0.057, (b) Bi 4 f, (c) V 2p and (d) C 1 s for BiVO4-0.057.
Figure 4 | Scientific Reports
From: BiVO4-rGO with a novel structure on steel fabric used as high-performance photocatalysts
(a) Survey XPS spectra for BiVO4 and BiVO4-0.057, (b) Bi 4 f, (c) V 2p and (d) C 1 s for BiVO4-0.057.
