Figure 2

From: Shedding new light on the Crab with polarized X-rays

Figure 2

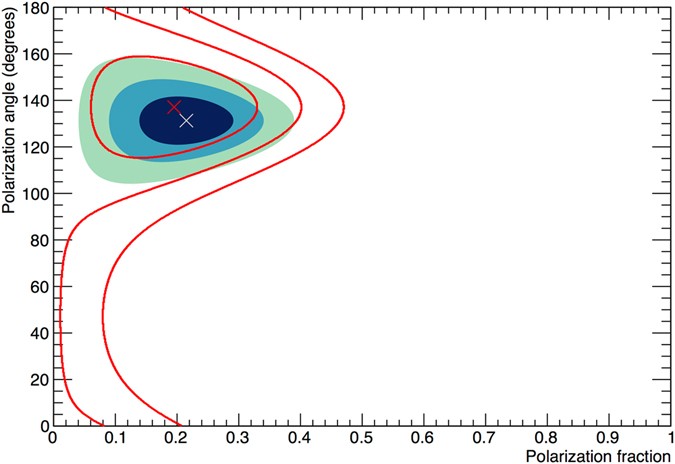

Polarisation contour plots for the Crab observation. Gaussian 1, 2 and 3𝜎 probability contours for phase-integrated (shaded area) and off- pulse Crab observations (red lines). Crosses indicate maximum a posteriori estimates, see Supplementary Information for details.
