From: Loss of function of Arabidopsis microRNA-machinery genes impairs fertility, and has effects on homologous recombination and meiotic chromatin dynamics

Figure 1

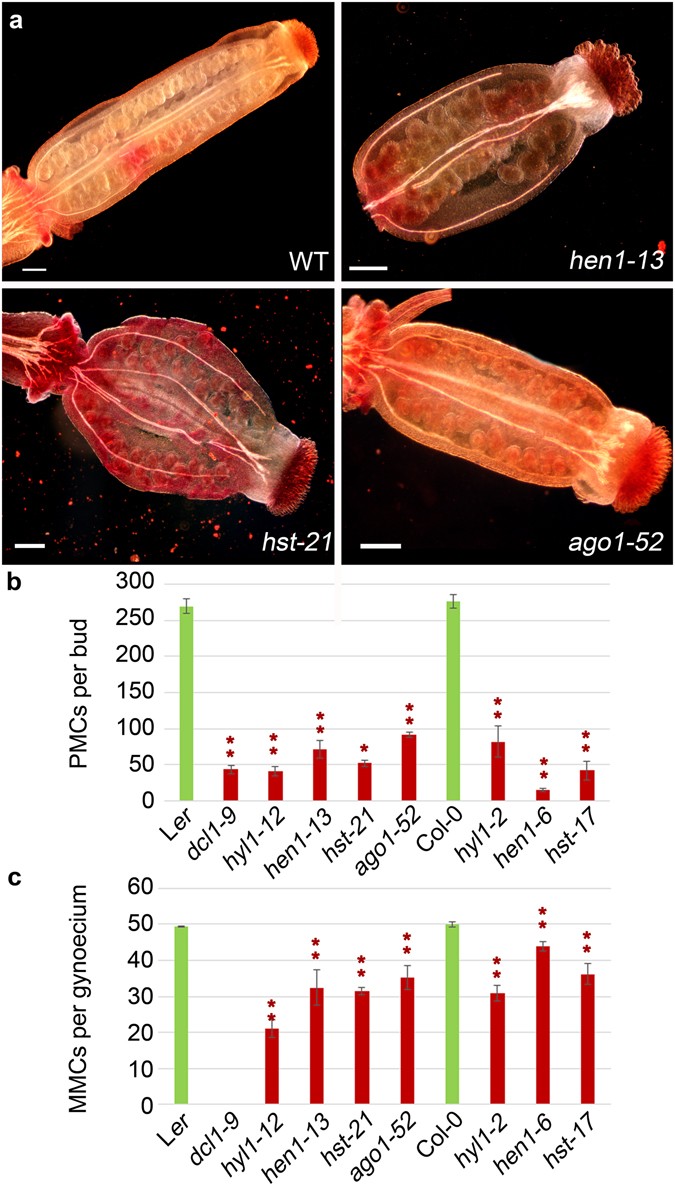

Gynoecium morphology, and PMC and MMC number in the hen1-13, hst-21 and ago1-52 mutants. (a) Representative images of carmine staining of gynoecia from Ler and the hen1-13, hst-21 and ago1-52 mutants. (b) PMC number per bud. (c) MMC number per gynoecium. Asterisks indicate a significant difference with the corresponding wild type in a Mann-Whitney U test (*p < 0.05 and **p < 0.01).
